Start reference run

Start reference run

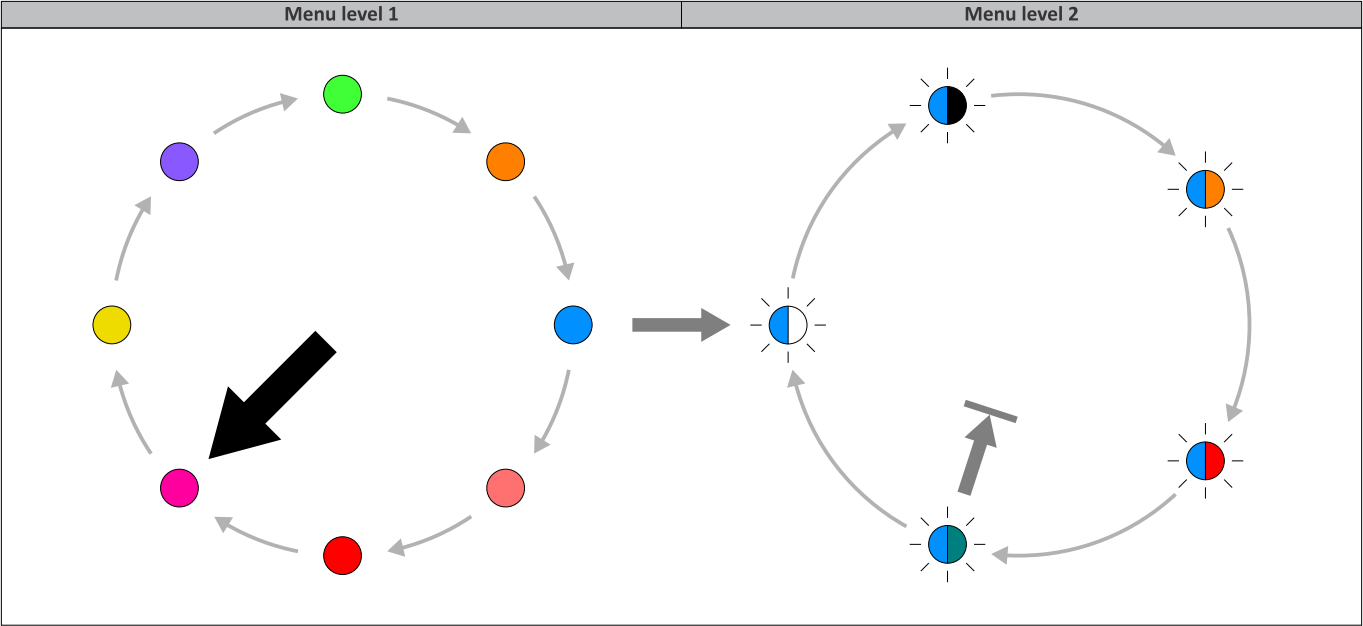

Menu_Circle

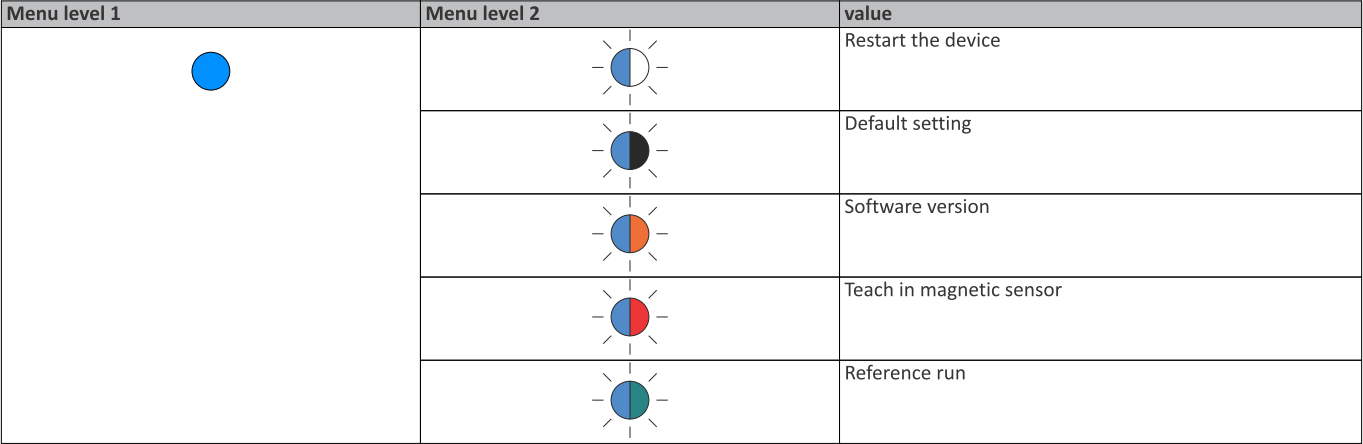

Menu
  • Prerequisites
    • The status LED lights up green.
    • The LED button lights up white in day mode or blue in night mode.
Press this Button
  1. Press the LED button if no LEDs light up.
  2. To change to menu level 1, press and hold down the LED button for 8 seconds until it light up magenta and emits an acoustic signal.
  3. Press the LED button until it lights up light blue to proceed to the "Device services" menu.
  4. Press the LED button 3x for versions EA or CA.
  5. Press the LED button 5x for versions EB or CB.
  6. To change to menu level 2, press and hold down the LED button for 3 seconds.
  7. To start the reference run, press the LED button 4x until it flashed light blue and turquoise.
  8. Hold down the LED button for 3 seconds.
    ➔ The reference run starts. The drive of the electromechanical multi-point lock moves to the end position.
