axxent hinge

---

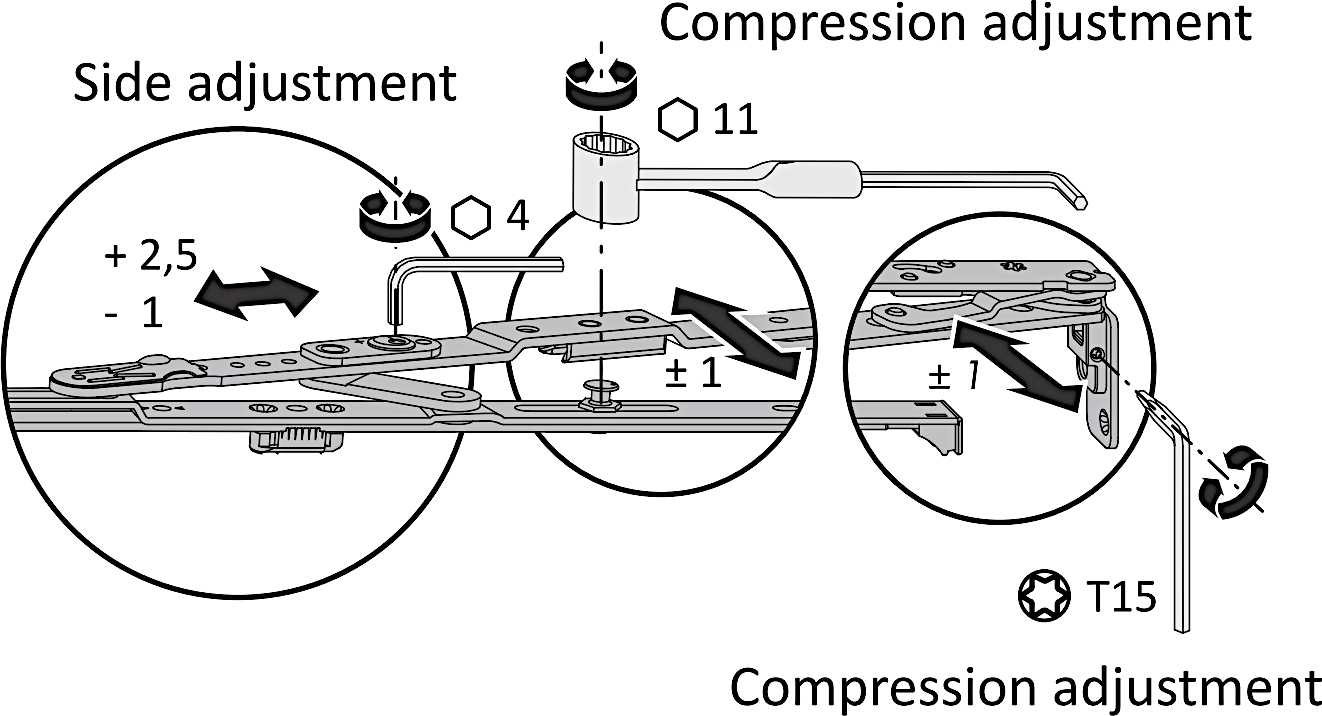

You can adjust the stay in three different ways, as shown in the above image:

• Side adjustment using a 4mm allen key or screwdriver,
• Compression adjustment by using the SIEGENIA adjustment tool,
• Compression adjustment on the corner using a torx 15mm allen key or screwdriver.

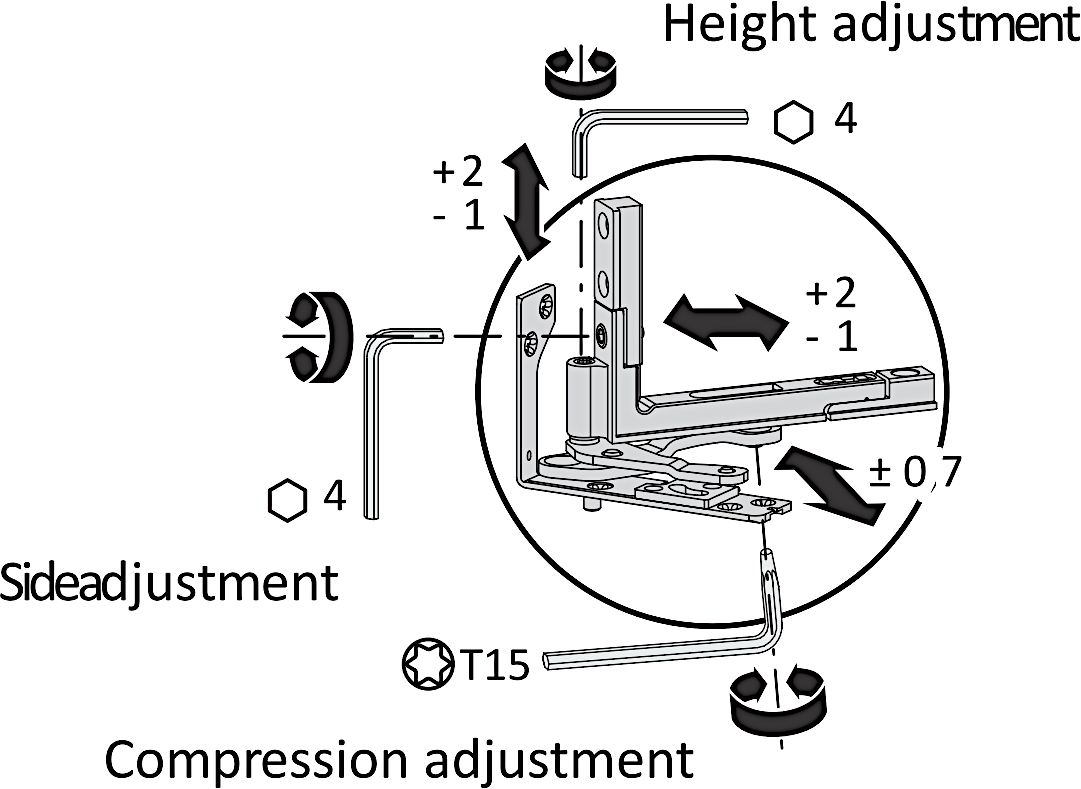

Adjusting the bottom and corner hinge is possible in three different ways, as shown in the above image:

• Side adjustment using a 4mm allen key or screwdriver,
• Height adjustment by using a 4mm allen key or screwdriver,
• Compression adjustment from the bottom using a TX-15mm allen key or screwdriver.
