Change DIN orientation of the main lock latch

Change DIN orientation of the main lock latch

  1. Press the LED button if no LEDs light up.
  2. Insert the screwdriver through the hole at the rear of the gear box.
    2. Insert the screwdriver through the hole at the rear of the gear box.
  3. Loosen the locking screw of the latch shaft and remove the latch.
    3. Loosen the locking screw of the latch shaft and remove the latch.

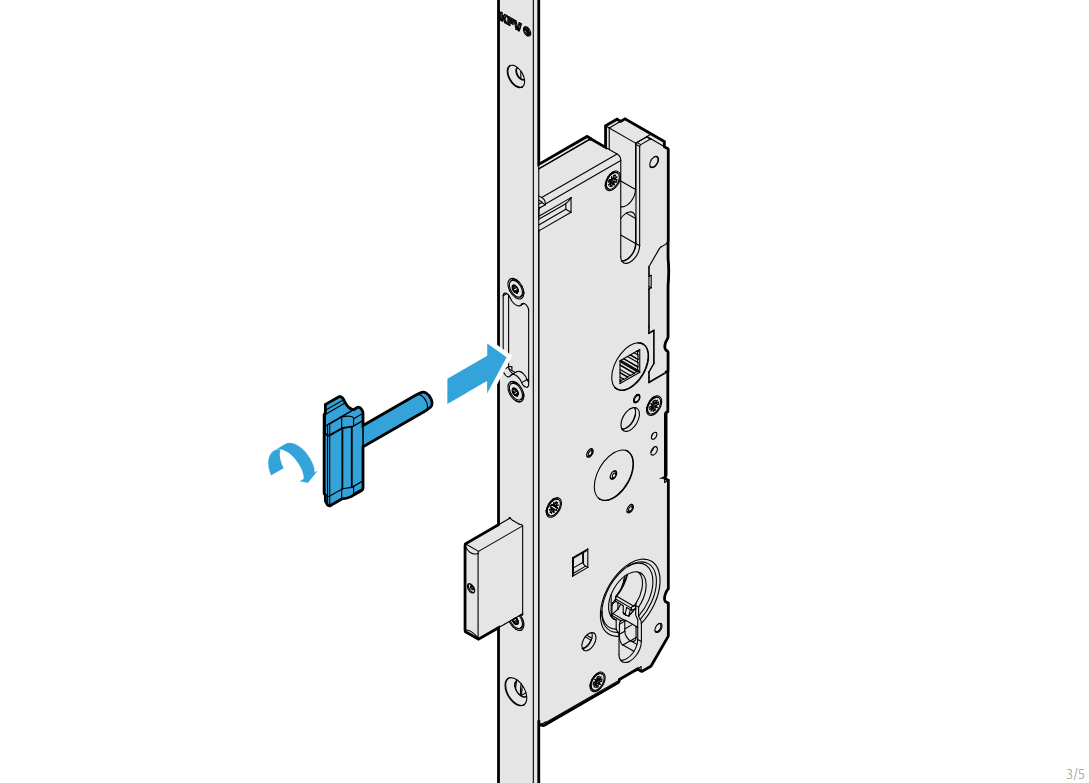

  4. Turn the latch by 180° and press into the gear box.
    4. Turn the latch by 180° and press into the gear box.
  5. Tighten the locking screw of the latch shaft with the screwdriver.
    5. Tighten the locking screw of the latch shaft with the screwdriver.

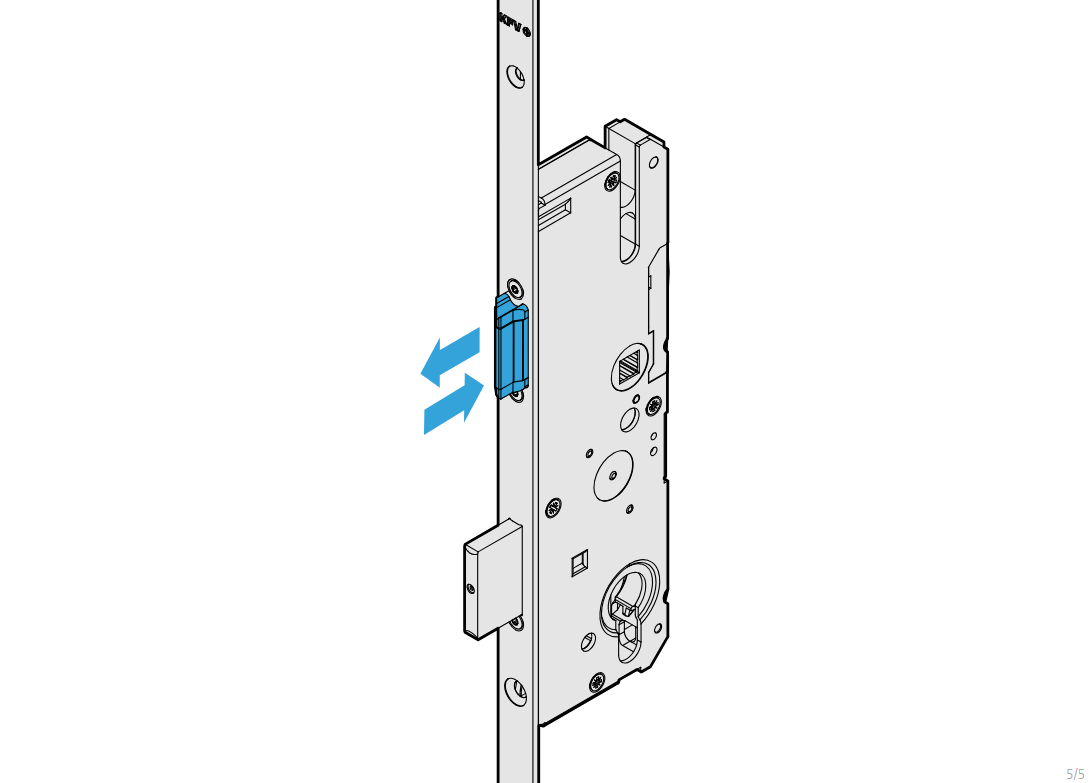

  6. Press the latch into the gear box several times.
    6. Press the latch into the gear box several times.
  7. Check that the latch moves smoothly and independently.
